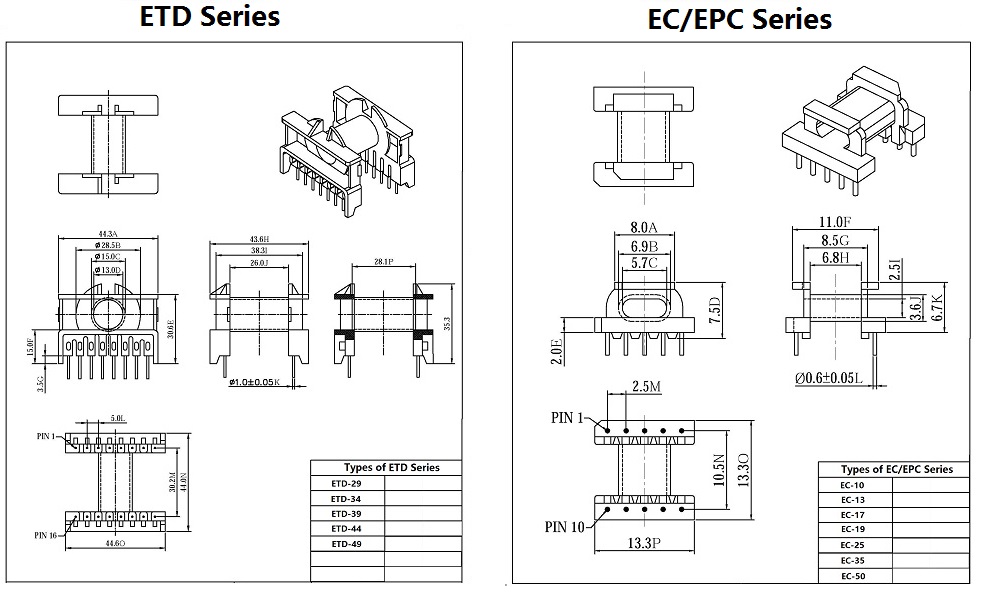

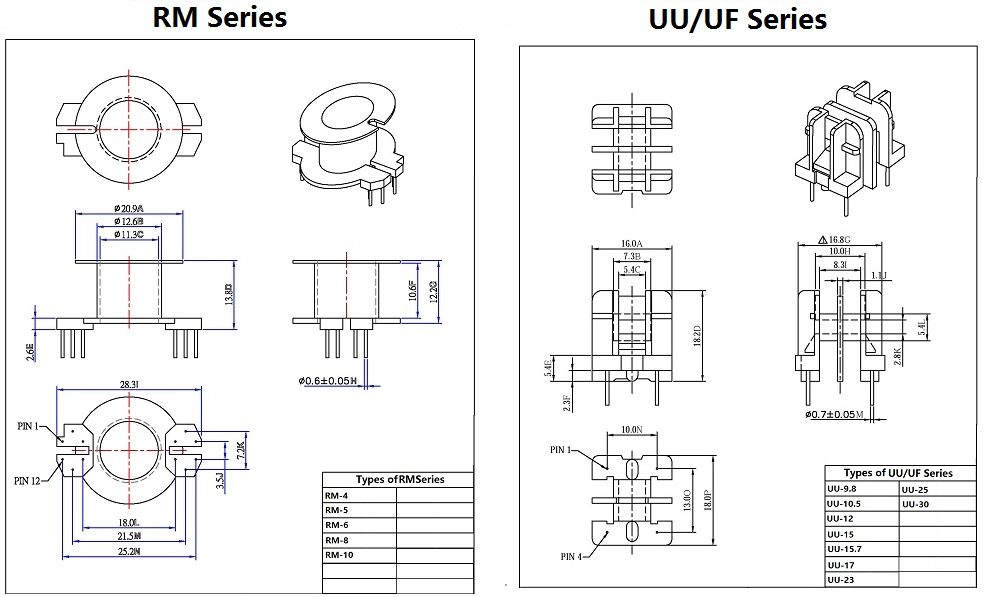

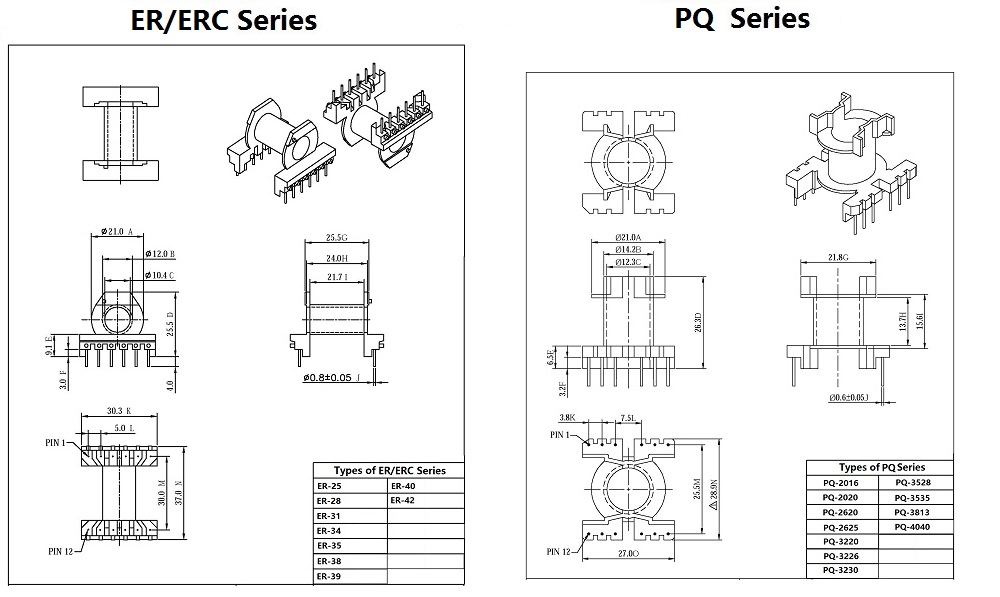

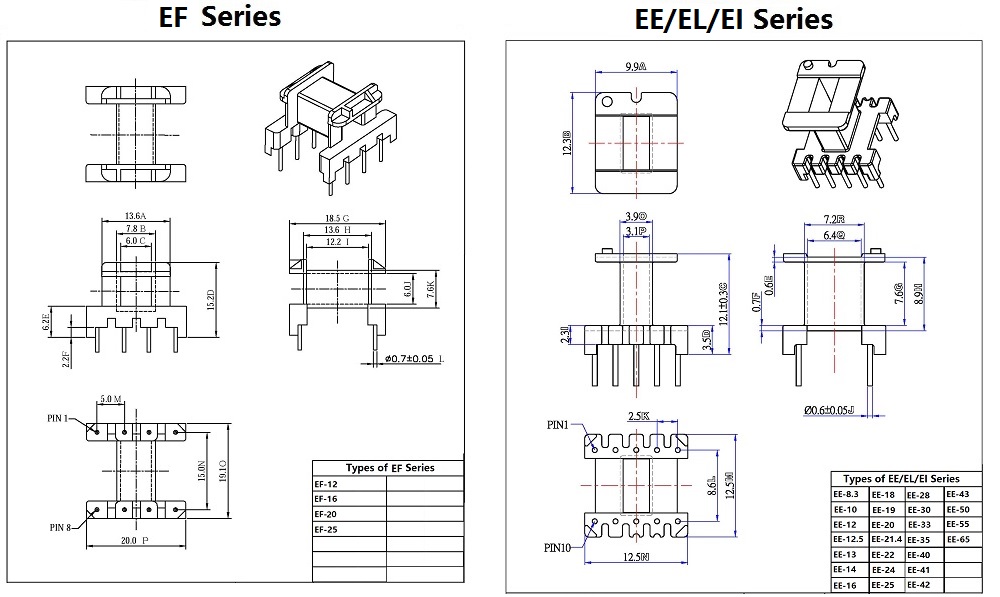

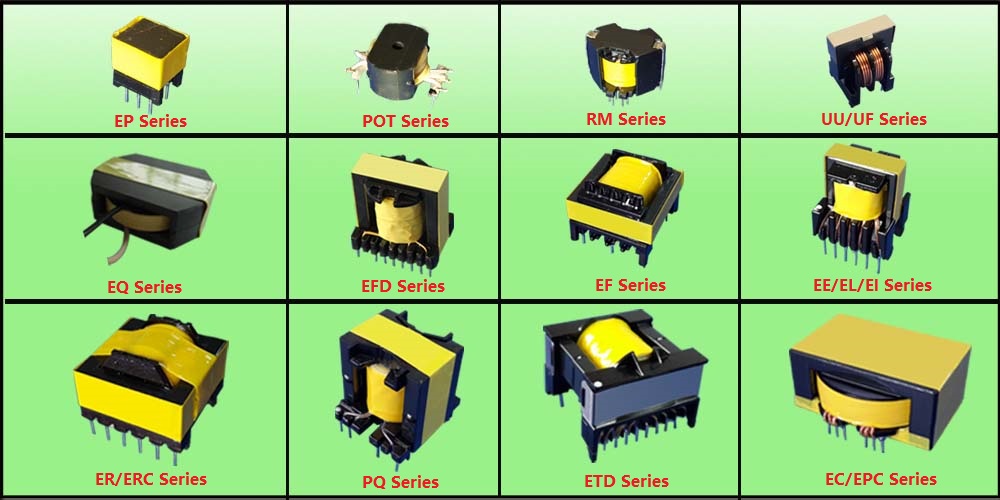

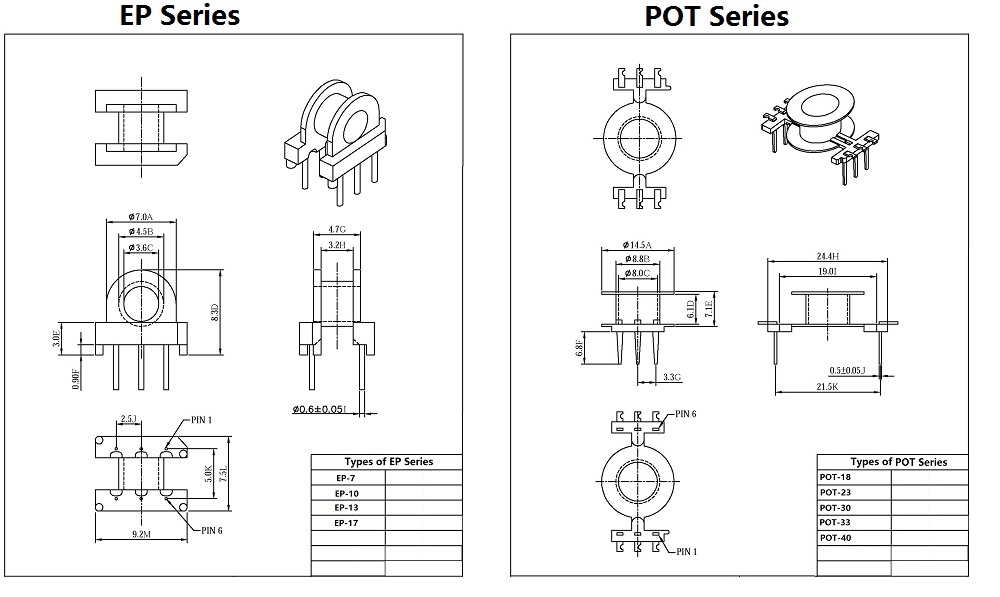

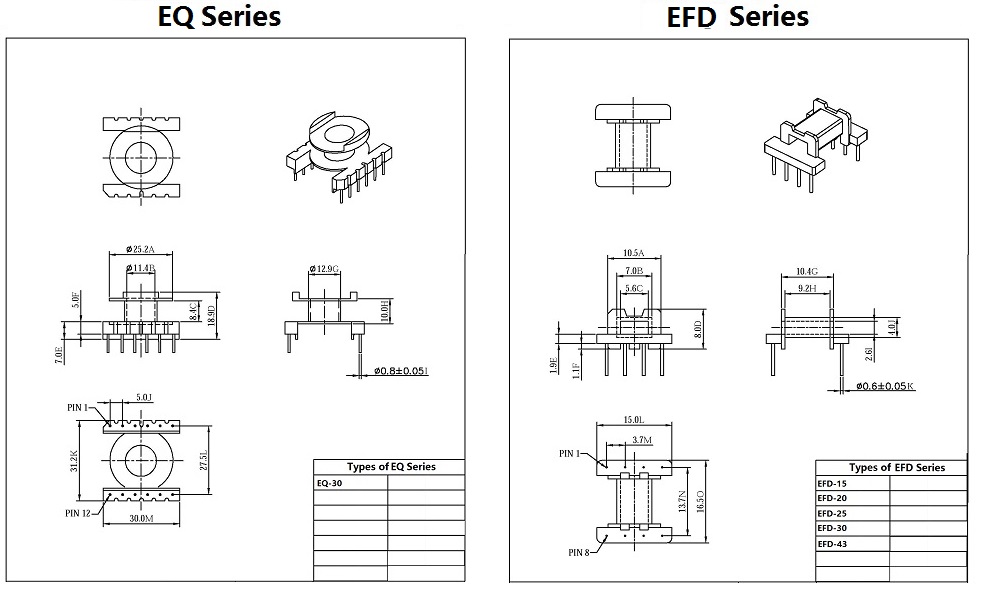

Our standard configuration switchmode transformers are available in several tables listed below.  Our design is based on different core styles. Every core styles have their own series. They are EP, POT, RM, UU/UF, EQ, EFD, EF, EE/EL/EI, ER/ERC, PQ, ETD, EPC.  If our standard products do not fit your requirements, contact us to review the wide range of custom sizes and shapes available.

Power Supply Transformer

Power supply transformer designs are used extensively in high frequency electronic applications, usually within a switchmode power supply.  Common transformer configurations include Flyback Transformers Design, High Frequency Transformers Design and Push-Pull Transformers Design.  Fule Electronics, a specialist in custom and standard magnetic design and manufacture, has been involved in developing Switchmode Transformers and other magnetic components for its' customers since 2003.  During that time, Fule Electronics. has customized many designs, specifically to our customer’s specific need.

 Fule. has also developed "standard" switchmode transformers, Flyback Transformers, Isolation Transformers and High Frequency Transformers using industry standard materials and footprints.  These "standard" switchmode transformers are designed around a sizing factor.  The sizing factor is a formula based upon the applications output power, topology (push-pull, bridge, full wave center tapped, forward, and flyback), and frequency.  Using the estimated sizing factor an engineer can easily find which of the standard Fule Electronics. tables of Switchmode Transformers will work for his application.

 Fule Electroincs. understands that each customer’s SMPS Transformer Design requirement is unique.  Our staff of design engineers works with our customers engineers to develop the best product for the application.  Fule Electronics. does not try to use a one size fits all mentality, and has developed new cores and mounting technologies for many of its customers.
